1060 original packaging is a large power plug, you need to destroy the outer packaging, please note before buying, once the plug is replaced, it does not support return.
Note: This ESC after-sales by the manufacturer, such as product problems, our store only provides technical support, after purchase is not returned because of unusable, our store guarantees the original factory packaging, unopened, our store has the right of final interpretation.

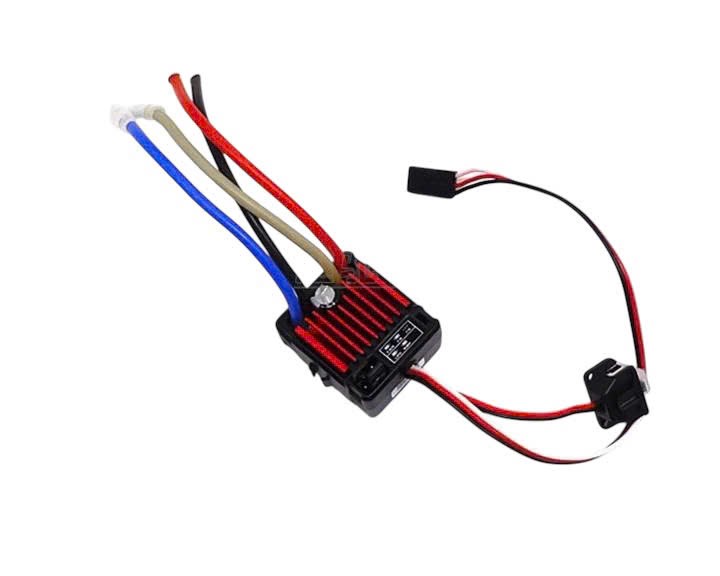

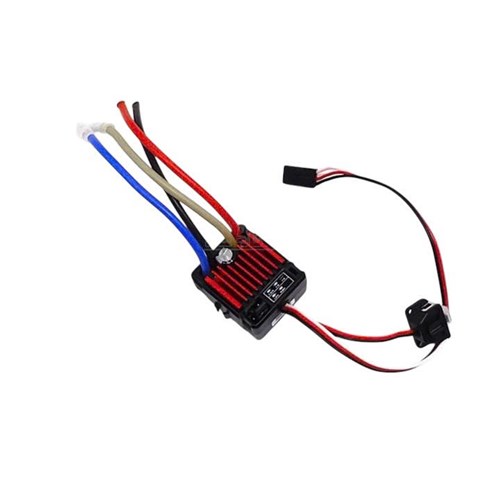

1060RTR basic parameters: 60A forward, 30A reverse
Applicable range: 1/10 scale, using 540 or 550 brush motor, such as 1/10 electric room / electric crossing / climbing / large foot / short card
BEC output: 5V 2A
Voltage input range: 2 ~ 3S lithium battery (with lithium battery protection, adjustable by bypassing the foot) or: 5 ~ 9cell nickel-metal hydride battery
ESC size: 36.5 * 32 * 18mm
Weight: 39g
Operating mode description:
F / B / R: Forward / Brake / Reverse, this mode is commonly used
F / B: Forward / Brake, this is the racing mode, no reverse function
F / R: Forward / Reverse, this is the climbing mode, only forward and backward, automatic braking 100% (pull brake) when the throttle is in the middle position

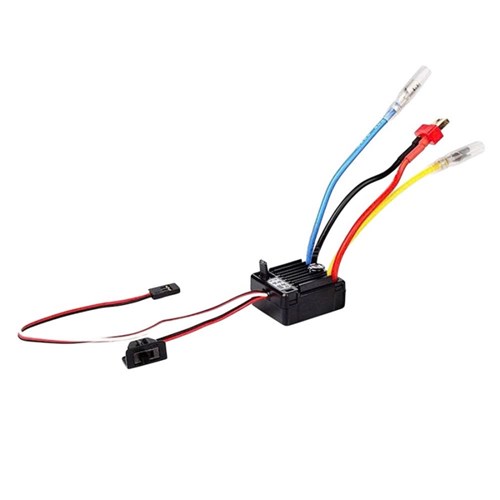

WP-1060 single-circuit 60A version basic parameters: forward 60A, reverse 30A
Scope of application: 1/10 scale, using 540 or 550 brush motor, such as 1/10 electric room / electric crossing / climbing / large foot / short card
BEC output: 5V 2A
Voltage input range: 2 ~ 3S lithium battery (with lithium battery protection, adjustable by bypass)
Or: 5 ~ 9cell NiMH power
It is not recommended to use 3S lithium battery, the heat generation of motor and ESC will increase sharply, so you need to be careful if you insist on using 3S
Motor T number range (under standard 540 motor):
2S lithium battery case: >12T brushed or RPM<30000
Lithium battery case 3S: >18T brushed or RPM<20000
The positive pole of the ESC yellow wire motor and the negative pole of the blue wire motor connection
Description of the operating mode:
F / B / R: Forward / Brake / Reverse, this mode is commonly used
F / B: Forward / Brake, this is the racing mode, no reverse function
F / R: Forward / Reverse, this is the climbing mode, only forward and reverse, 100% automatic braking (pull brake) when the throttle is in the middle position
Please note that when the F / R mode is selected in the climbing mode, that is, in the running mode, the pull brake value is fixed at 100% and cannot be adjusted, and there is no pull brake function in other modes.
Battery type description:
When the lithium battery (LIPO) is selected, such as when the voltage of the 2S lithium battery is lower than 6.5V, the ESC will reduce the output power by half, and when the voltage of the 2S lithium battery is lower than 6V, the ESC will cut off the output
When the nickel-ion battery (NIMH) is selected, if the nickel voltage is less than 4.5V, the ESC will reduce the output power by half, and when the nickel voltage is less than 4V, the ESC will cut off the output
The brushed ESC and all brushed motors are completely waterproof and can be used in water for a long time. But after watering, you need to pay attention to 3 maintenance points:
1. Be sure to maintain the motor bearing with lubricating oil immediately
2. Be sure to dry the water between the copper head and the carbon brush as soon as possible, and do not wait for the water to dry naturally
3. The plugs on the ESC and motor should also be dried as soon as possible
