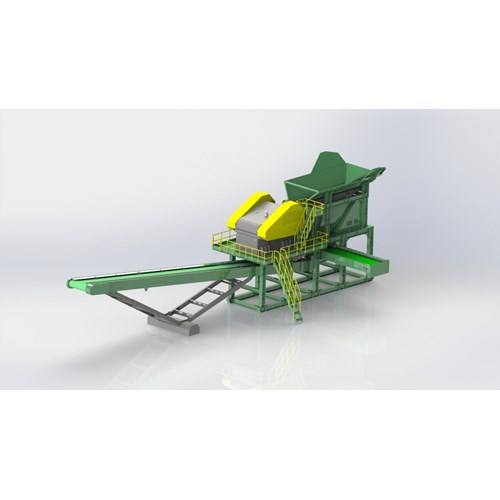

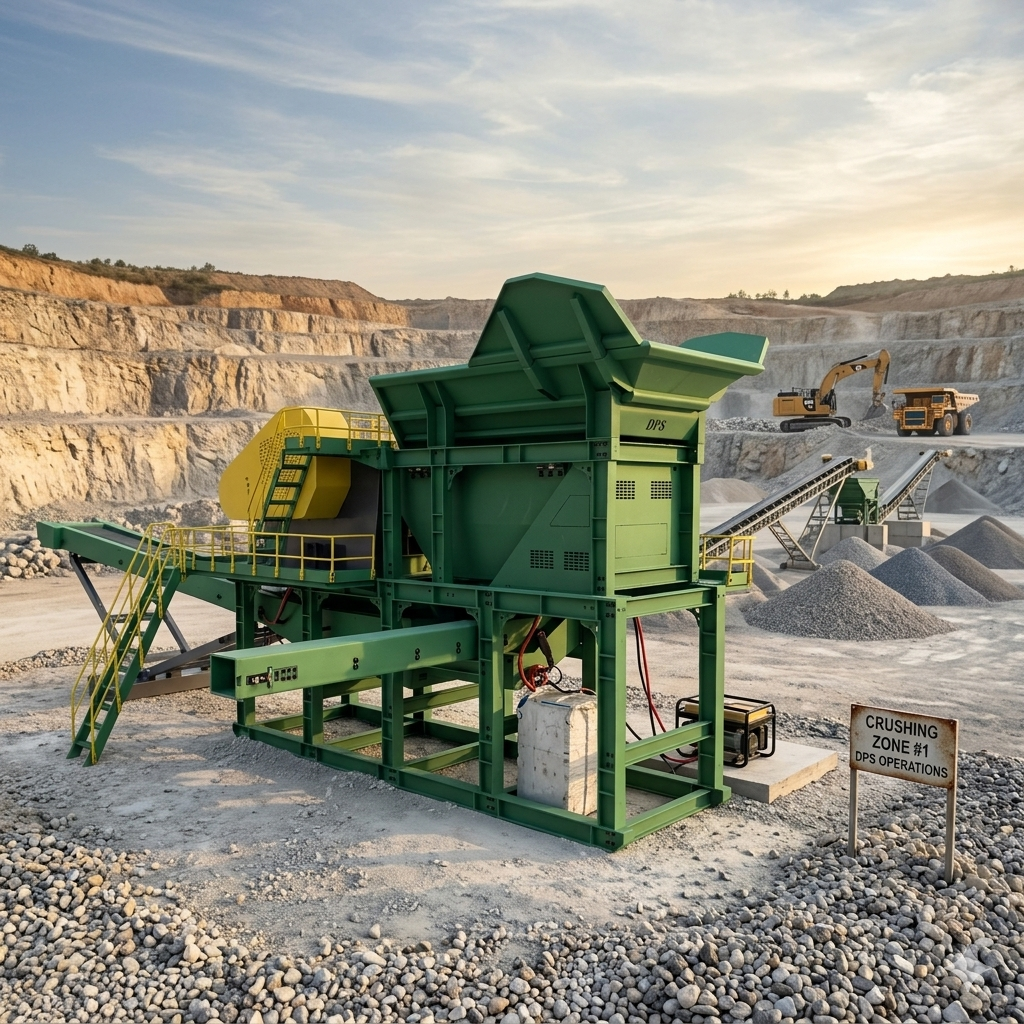

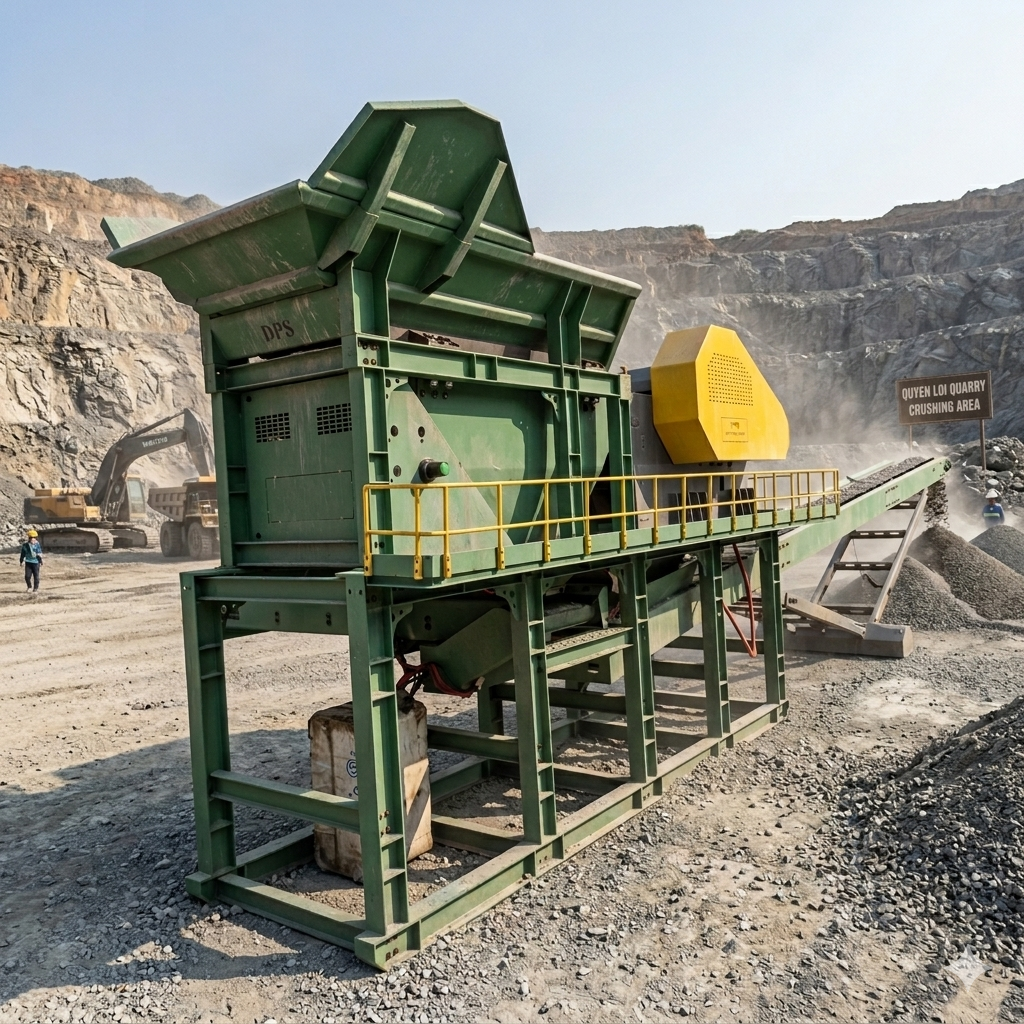

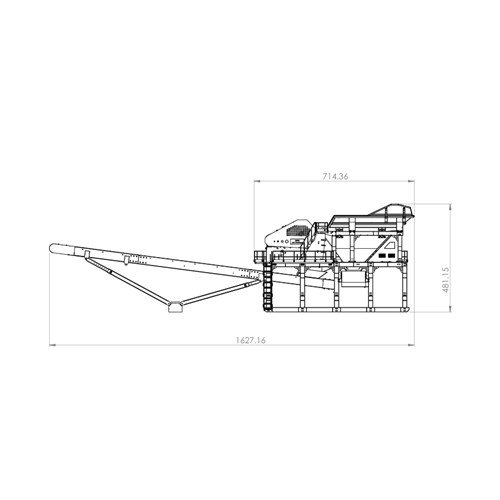

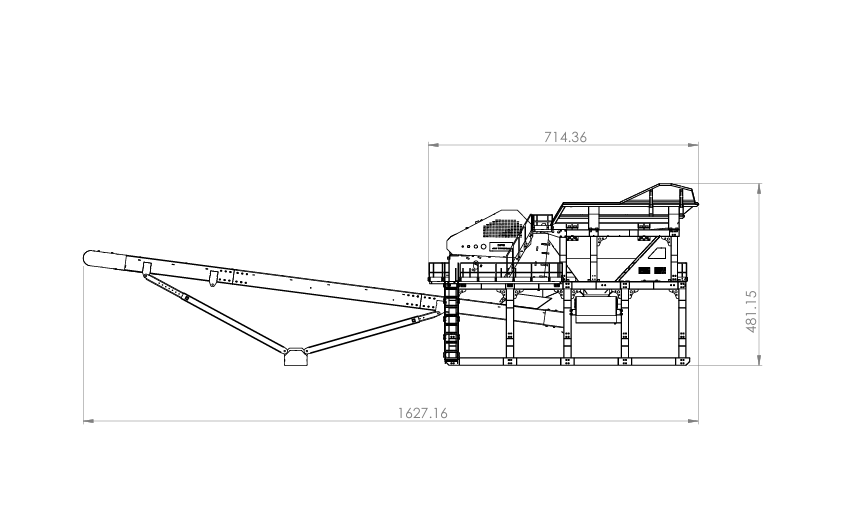

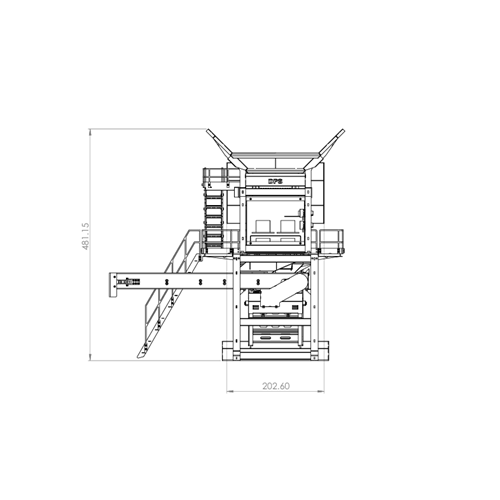

Based on detailed architectural renderings, the DPS Fixed Stationary Jaw Crusher System is a masterpiece of precision engineering, designed to be the massive, permanent focal point of your 1:14 scale mining operation or aggregate quarry. This system doesn’t just look industrial; it is an industrial plant in miniature.
Massive Structural Core: The entire structure is a rigid, open-lattice steel frame (finished in safety-green) that provides the unyielding stability needed for a heavy-duty stationary setup.
Operator Accessibility (Safety Details): As seen in the reference, the system includes a complete network of integrated safety features:
Precision Ladders: An access ladder (yellow) enables scale operators to climb from ground level to the main deck.
Elevated Walkways: A full perimeter deck with detailed yellow guardrails surrounds the primary crushing unit, allowing for maintenance inspection.
Primary Crush Unit (The Heart): The central crushing motor housing (finished in industrial yellow) is prominent, symbolizing the immense power within. Above it sits the high-capacity, oversized green feed hopper, optimized for heavy, continuous loading.
Dual Conveyor System: The visual design incorporates a complete material workflow. After being crushed, material is sorted and distributed via two separate conveyors:

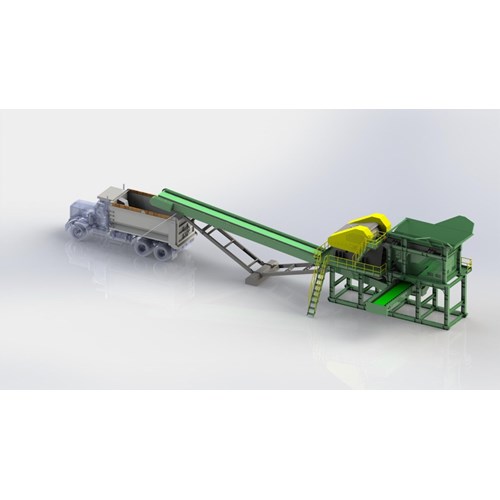

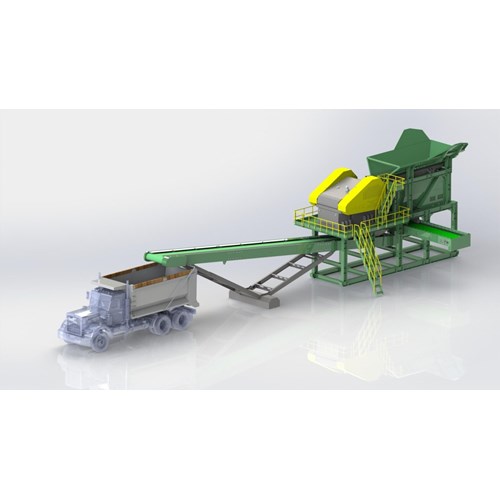

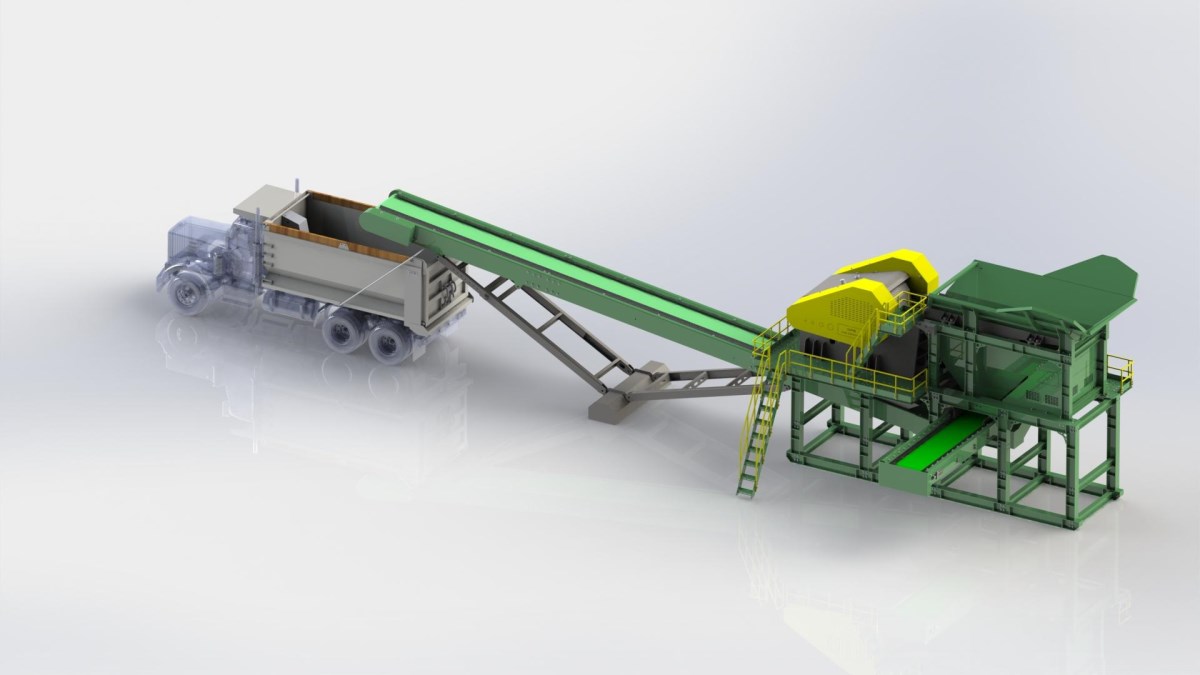

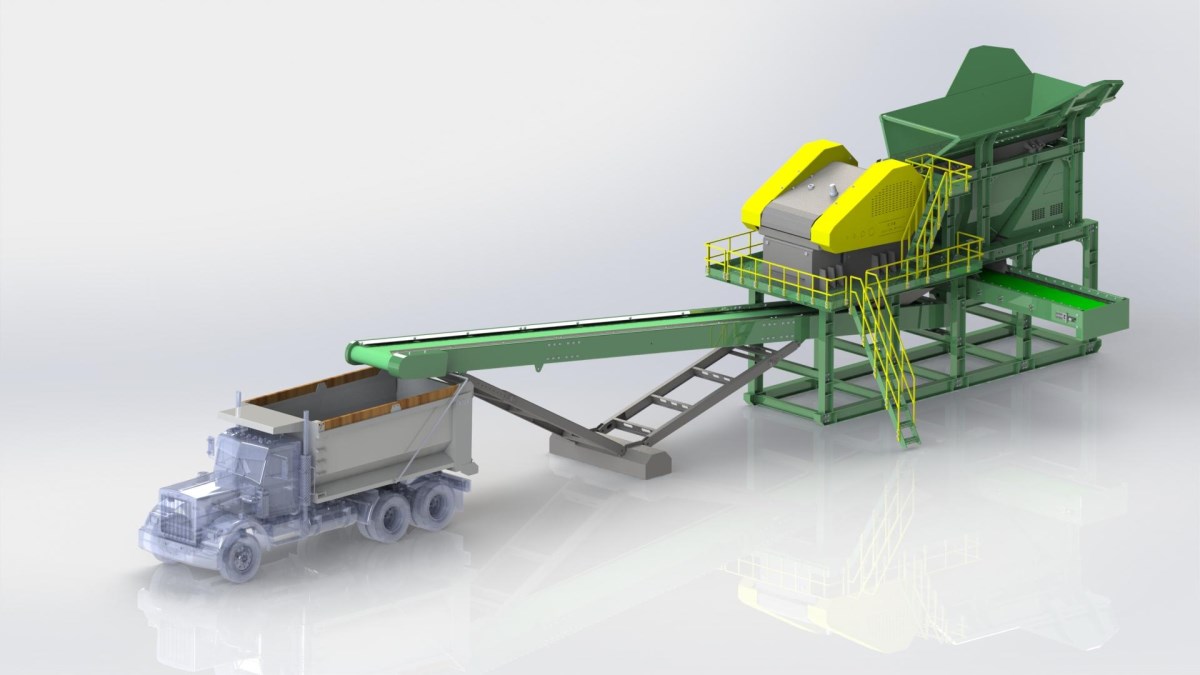

Main Product Discharge Conveyor: A long, large-scale conveyor (left, angled downward) extends to transport finished fine aggregate to a storage stockpile.
Secondary/Reject/Fines Conveyor: A shorter conveyor (rear, right) handles a second size of material, enabling size-based sorting.
Unrivaled Hardness: Inside, the jaw plates are Carbon-Hardened (64 HRC), capable of crushing actual stones with durability that defies its scale.
Scale: 1:14
Material: 100% Solid Steel Frame (Safety Green with Yellow guardrails and motor covers).
Manufacturing: CNC Machined structure, Wire EDM components, Laser Welding for structural joints.
Jaw Hardness: 64 HRC (Carbon Heat-Treated).
Output Adjustment: 1.5mm steps.
Conveyors: Fully operational Dual-Belt system (Main Discharge and Fines Discharge).
Feeding: Large-capacity green hopper.
Features: Operational scale access ladder and elevated safety walkway with guardrails.
